Product Description
Features
1. Miniature DC permanent magnet motor, small size, easy to install
2. Hydraulic transmission, stable operation and impact resistance
3. Reciprocating motion; maximum thrust 8000N; maximum static load 13000N
4. No-load linear speed 16mm/s
5. Optional -20 ° C ~ 65 ° C environment configuration.
6. Fully enclosed hydraulic system, reliable, maintenance free.
7. Compact structure, no external pipeline, environmental protection and no pollution.
8. IP Grade IP65
9. Widely used in all kinds of industrial automation equipment, engineering vehicles and environmental protection, agricultural
machinery and other places that need to be driven.


Specifications
Max Dynamic Load
4000N/6000N/8000N
Max Static Load
13000N
Stroke(mm)
150/200/250/300/350
Installation distance(mm)
300/350/400/450/500
Orifice
A/B
Input Voltage
12/24/36/48VDC
Speed at no load
16mm/s
Temperature
-20℃~65℃
IP Grade
IP65
Pump press
7.1MPa
Pump duty
0.33ml/rpm
Cylinder Diameter
φ38

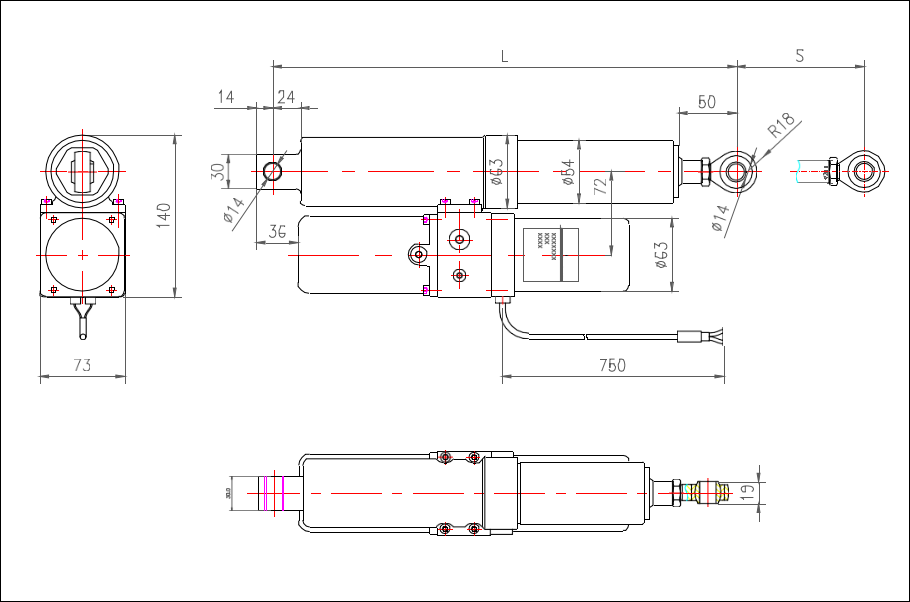

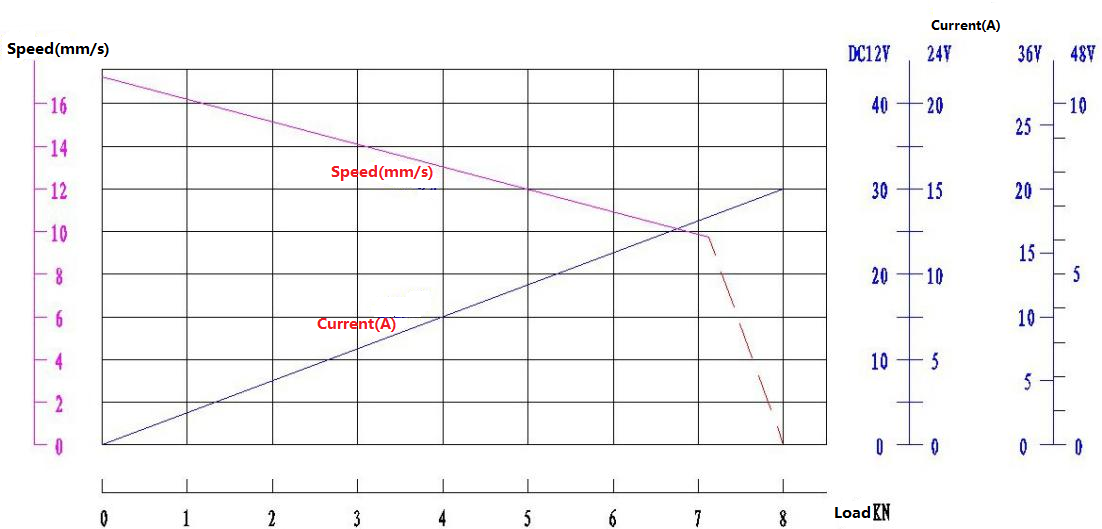

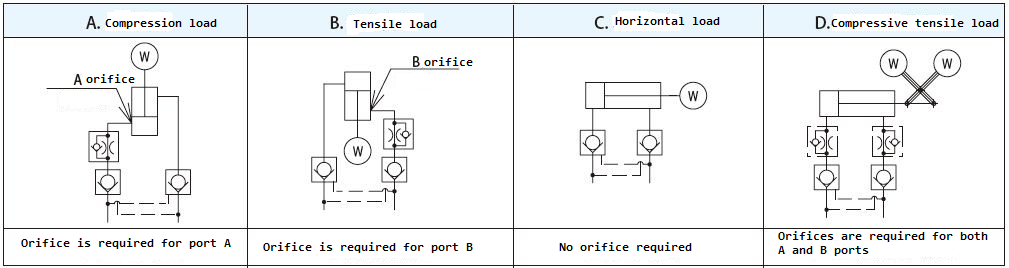

Selection of Throttle Hole
1. Throttle holes are needed on the reflux side when the cylinder shakes due to the drop of dead weight.
2. Choose throttle orifices at port A or B according to the load on the cylinde.
3. The purpose of throttle orifice is to have the same direction force of load and prevent running jitter.

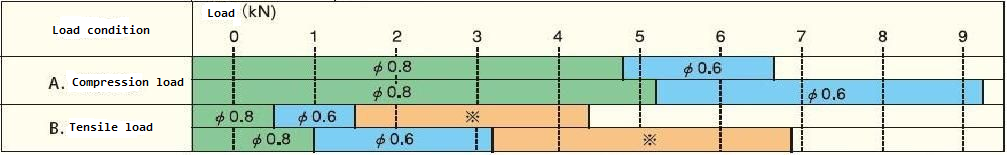

Load Form
Throttling aperture
Examples: 6 kN Compressed Load Choosing_0.6 Throttle Hole

Advantages
1. No additional hydraulic workstations required
2. Simply install the pin and electrical wiring at both ends of the cylinder during installation.
3. Since the DC motor and the hydraulic parts are all sealed, no oil leakage and in-cylinder water ingress will occur.
4. Hydraulic work has smooth movement and is suitable for installation with vibration mechanism
5. The reliability of the load can be maintained by a controllable check valve
6. Prevent overload by overflow valve and avoid motor damage due to load




Datasheet: LA-HDA.pdf
