LAJL01

LAJL01

20000N push force
100mm/sec Speed
Servo Linear Actuator

U.S.＄ 0.00
0.00
Quantity：
Buy now
Add to cart

Product Description

20000N push force
100mm/sec Speed
Servo Linear Actuator

Features

1.  Four motors are optional;
2.  Stroke 100mm to 1000mm can be customized;
3.  Speed 25-100mm/s optional;
4.  Ultimate load 20,000N;
5.  Working temperature -15 to 40;
6.  Built-in limit switch;
7.  Protection class IP55;
8.  The product has obtained CE certification;
9.  It is recommended to fill the lead screw with oil once every 50km of operation.
Specifications

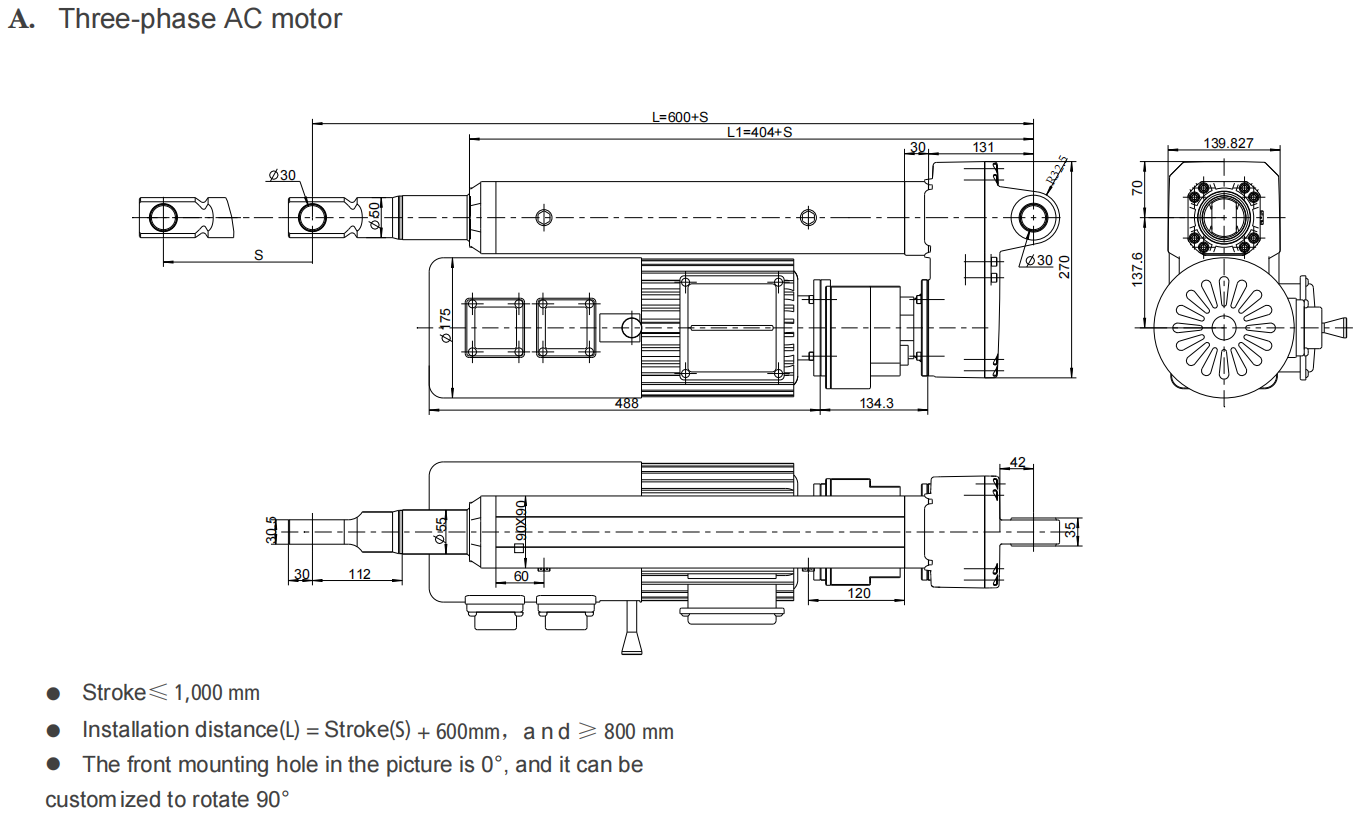

A. Three-phase AC motor(* When fully loaded in normal temperature environment, the duty cycle is 100%.)
Code
Synchronous
pulley speed
ratio
Reducer
speed
ratio
Speed
Max Load
Max Self-lock Load
No load Current
Full load Current
Ball
screw
Three-phase AC
frequency conversion
Motor configuration
(mm/s)
(N)
(N)
(A)
(A)
A
20:40
1:3
24~25
20000
22000
0.4
2.2
GQ3206
380VAC, 0.75KW,
50Hz, 4 poles,
1500rpm
Frequency range
30-70Hz
B
27:34
1:3
38~40
10000
12000
0.4
1.7
GQ3206
C
20:40
No reducer
72.5~75
5000
7000
0.4
1.6
GQ3206

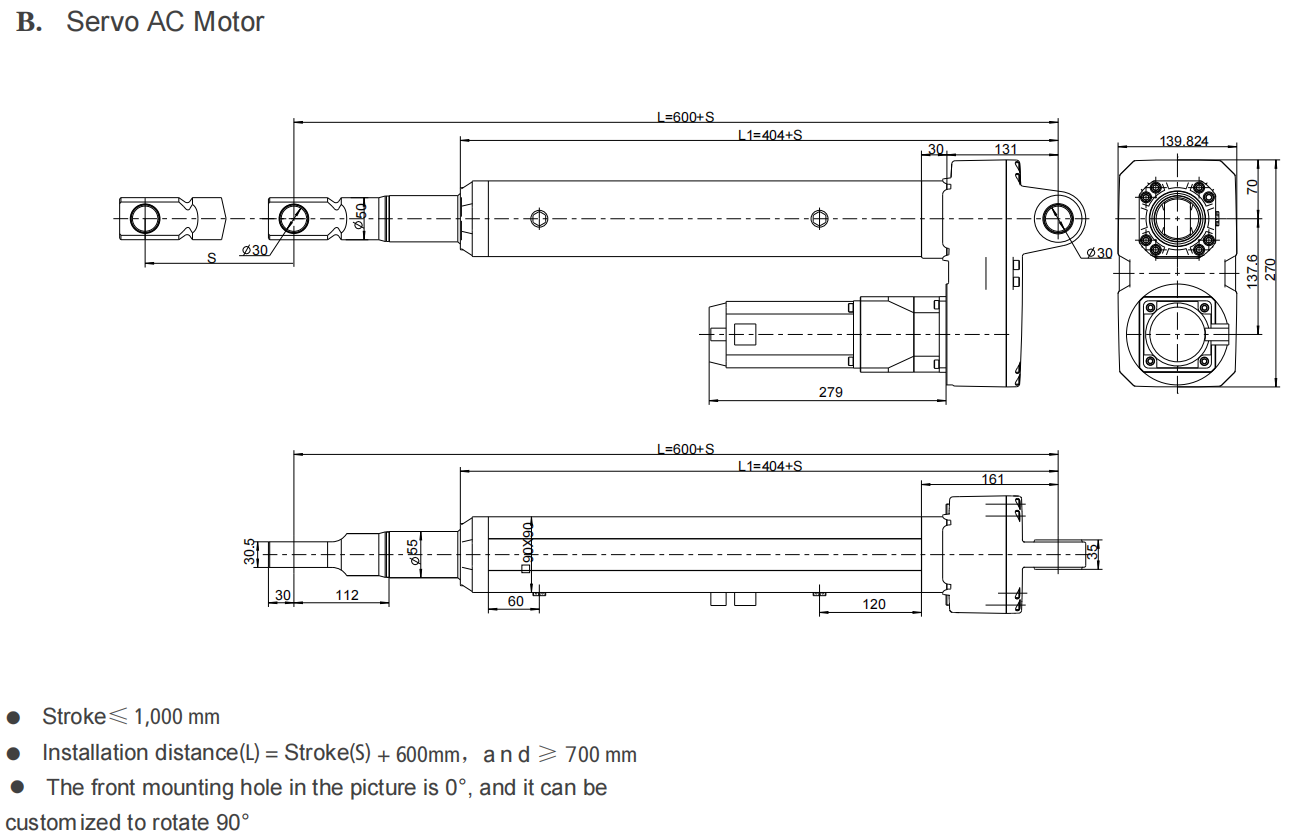

B. Servo AC motor(* When fully loaded in normal temperature environment, the duty cycle is 100%.)
Code
Synchronous
pulley speed
ratio
Reducer
speed
ratio
Speed
Max Load
Max Self-lock Load
No load Current
Full load Current
Ball
screw
Servo AC Motor
Configuration
(mm/s)
(N)
(N)
(A)
(A)
E
20:40
1:6
24~25
20000
22000
0.7
3.7
GQ3206
220V AC, 0.75KW,
50Hz 3,000 rpm
F
20:40
1:3
49~50
10000
12000
0.7
3.7
GQ3206
G
27:43
1:3
79~80
5000
7000
3.00.7
1.6
GQ3206

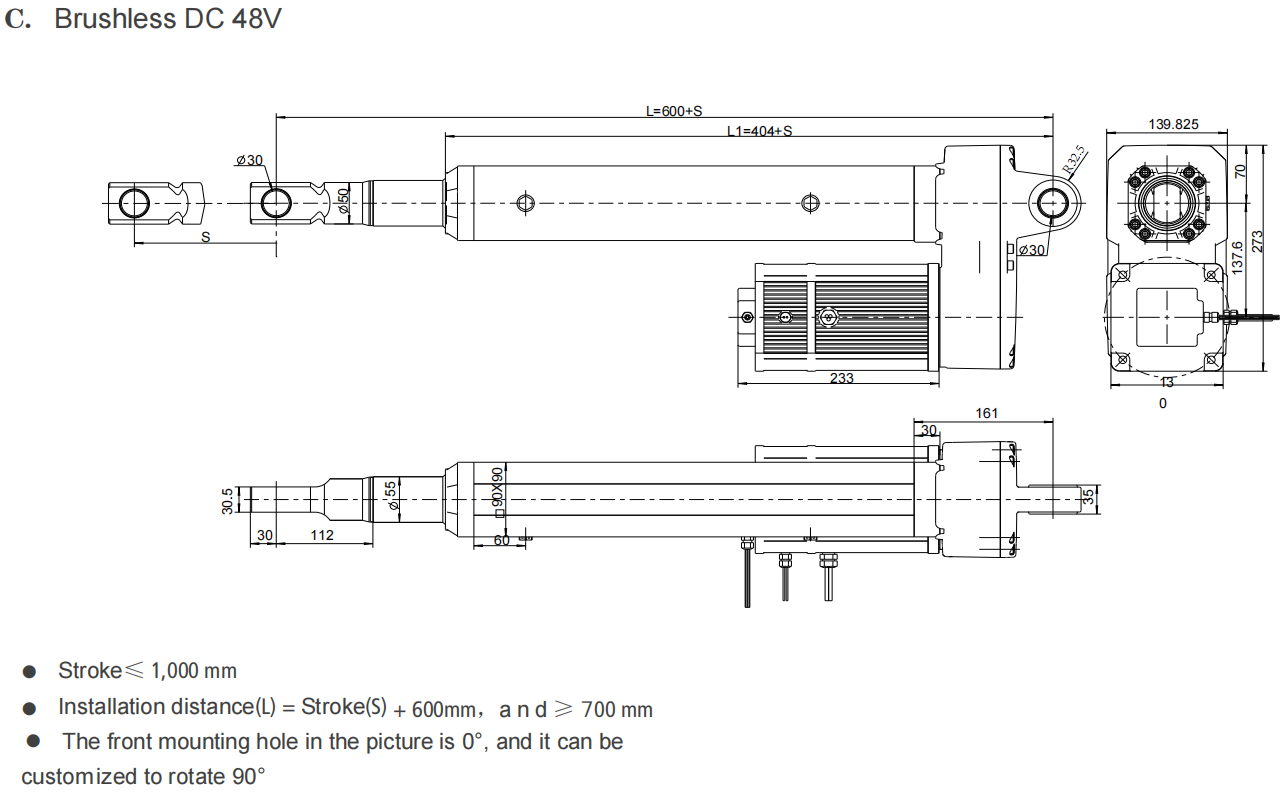

C. Brushless DC Motor 48v(* When fully loaded in normal temperature environment, the duty cycle is 50%.)
Code
Synchronous
pulley speed
ratio
Motor
output
speed
Speed
Max Load
Max Self-lock Load
Voltage
No load Current
Full load Current
Ball
screw
rpm
(mm/s)
(N)
(N)
(V)
(A)
(A)
H
20:40
500
24~25
20000
22000
48
7
16.8
GQ3206
I
20:40
1000
48~50
10000
12000
48
7
16.8
GQ3206
J
20:40
2000
96~100
5000
7000
48
7
16.8
GQ3206

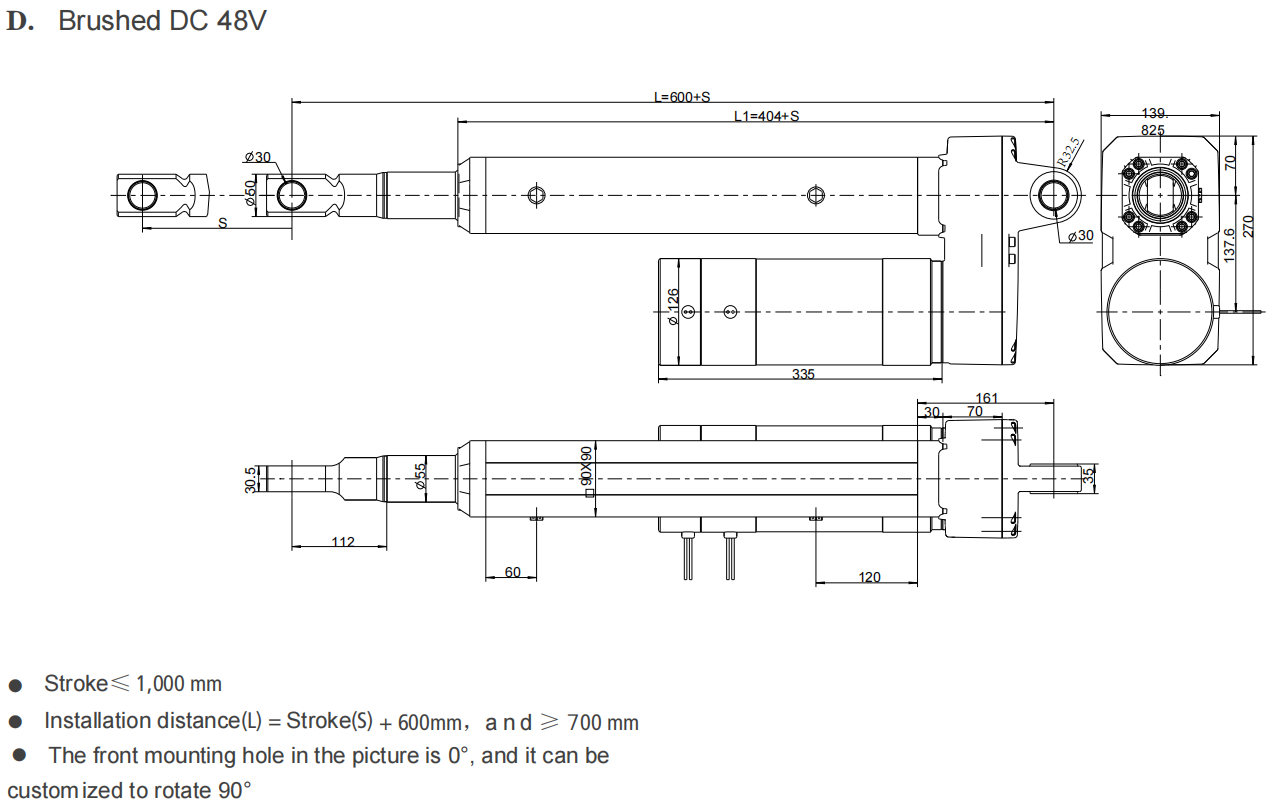

D. Brushed DC Motor 48v(* When fully loaded in normal temperature environment, the duty cycle is 20%.)
Code
Synchronous
pulley speed
ratio
Motor
output
speed
Speed
Max Load
Max Self-lock Load
Voltage
No load Current
Full load Current
Ball
screw
rpm
(mm/s)
(N)
(N)
(V)
(A)
(A)
K
20:40
500
24~25
20000
22000
48
7
16.8
GQ3206
L
20:40
1000
48~50
10000
12000
48
7
16.8
GQ3206
M
20:40
2000
96~100
5000
7000
48
7
16.8
GQ3206

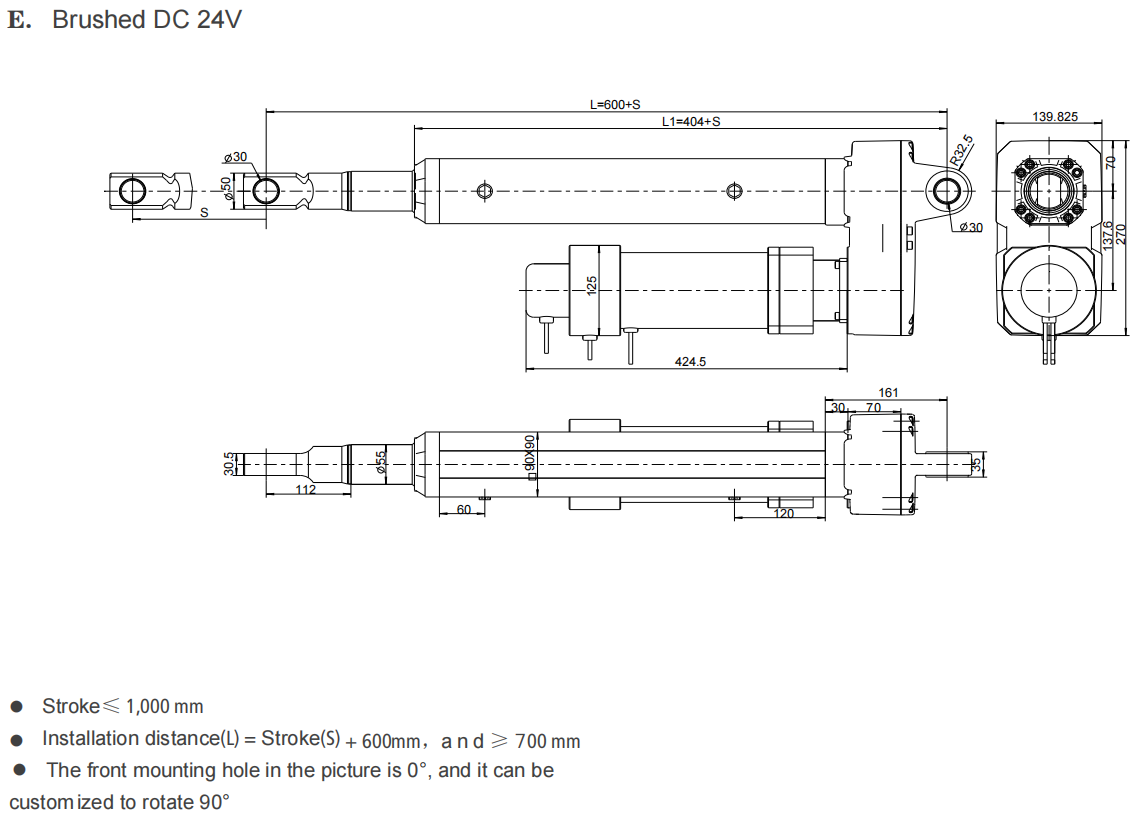

E. Brushed DC Motor 24v(* When fully loaded in normal temperature environment, the duty cycle is 20%.)
Code
Synchronous
pulley speed
ratio
Motor
output
speed
Speed
Max Load
Max Self-lock Load
Voltage
No load Current
Full load Current
Ball
screw
rpm
(mm/s)
(N)
(N)
(V)
(A)
(A)
N
20:40
500
24~25
20000
22000
24
3.1
33.6
GQ3206
O
20:40
1000
48~50
10000
12000
24
3.1
33.6
GQ3206
P
20:40
2000
96~100
5000
7000
24
3.1
33.6
GQ3206


Dimension


Datasheet: LA-JL-01.pdf
